class DGFControlData: public TObject

_________________________________________________[C++ CLASS DEFINITION FILE]

 Name:           DGFControlData.h
 Purpose:        Class defs for the XIA DGF-4C GUI
 Class:          DGFControlData
 Description:    A GUI to operate a XIA DGF-4C
 Author:         R. Lutter
 Revision:       $Id: DGFControlData.h,v 1.17 2008-08-28 07:16:48 Rudolf.Lutter Exp $
 Date:
 URL:
 Keywords:

Function Members (Methods)

public:

	DGFControlData()
virtual	~DGFControlData()
void	TObject::AbstractMethod(const char* method) const
void	AddToUpdateList(DGFModule* Module)
virtual void	TObject::AppendPad(Option_t* option = "")
const Char_t*	BoldFont()
virtual void	TObject::Browse(TBrowser* b)
Int_t	ChannelIndex2Number(Int_t ChannelIndex)
Bool_t	CheckAccess(const Char_t* FileOrPath, Int_t AccessMode, TString& ErrMsg, Bool_t WarningOnly = kFALSE)
Bool_t	CheckIfStarted()
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TObject::Clear(Option_t* = "")
virtual TObject*	TObject::Clone(const char* newname = "") const
virtual Int_t	TObject::Compare(const TObject* obj) const
virtual void	TObject::Copy(TObject& object) const
TMrbLofNamedX*	CopyKeyList(TMrbLofNamedX* KeyList, Int_t Cluster = 0, Int_t NofClusters = -1, Bool_t ArrayMode = kTRUE)
TMrbLofNamedX*	CopyKeyList(TMrbLofNamedX* KeyList, Int_t Cluster, UInt_t Pattern, Bool_t ClearFlag = kFALSE)
virtual void	TObject::Delete(Option_t* option = "")MENU
TMrbResource*	Dgfrc()
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
DGFModule*	FirstModule()
Int_t	GetChannel(Int_t ChannelIndex)
Int_t	GetChannelIndex(Int_t Channel)
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
HistPresent*	GetHistPresent()
const Char_t*	GetHost()
virtual const char*	TObject::GetIconName() const
UInt_t	GetIndex(const Char_t* ModuleName)
UInt_t	GetIndex(const Char_t* ModuleName, Int_t& Cluster, Int_t& ModuleNumber)
TMrbNamedX*	GetKey(const Char_t* ModuleName)
TMrbNamedX*	GetKey(const Char_t* ModuleName, Int_t& Cluster, Int_t& ModuleNumber)
DGFModule*	GetModule(const Char_t* ModuleName)
DGFModule*	GetModule(Int_t GlobIndex)
DGFModule*	GetModule(Int_t Cluster, Int_t ModNo)
virtual const char*	TObject::GetName() const
Int_t	GetNofClusters()
Int_t	GetNofModules()
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
UInt_t	GetPatEnabled(Int_t Cluster)
UInt_t	GetPatInUse(Int_t Cluster)
Int_t	GetSelectedChannel()
Int_t	GetSelectedChannelIndex()
DGFModule*	GetSelectedModule()
Int_t	GetSelectedModuleIndex()
virtual const char*	TObject::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TObject::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
Bool_t	IsDebug()
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	IsOffline()
Bool_t	TObject::IsOnHeap() const
Bool_t	IsSingleStep()
virtual Bool_t	TObject::IsSortable() const
Bool_t	IsVerbose()
Bool_t	TObject::IsZombie() const
virtual void	TObject::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
UInt_t	ModuleIndex(Int_t Cluster, Int_t ModNo)
Bool_t	ModuleInUse(DGFModule* Module)
Bool_t	ModuleInUse(const Char_t* ModuleName)
DGFModule*	NextModule(DGFModule* Last)
const Char_t*	NormalFont()
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
TObject&	TObject::operator=(const TObject& rhs)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TObject::Print(Option_t* option = "") const
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
TMrbResource*	Rootrc()
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	SetLH(TGMrbLayout* Layout1, TGMrbLayout* Layout2, TGLayoutHints* Hints)
static void	TObject::SetObjectStat(Bool_t stat)
void	SetPatInUse(Int_t Cluster, UInt_t Pattern)
void	SetSelectedChannel(Int_t Channel)
void	SetSelectedChannelIndex(Int_t ChannelIndex)
void	SetSelectedModule(const Char_t* ModuleName)
void	SetSelectedModule(DGFModule* Module)
void	SetSelectedModuleIndex(Int_t ModuleIndex)
virtual void	TObject::SetUniqueID(UInt_t uid)
Int_t	SetupModuleList()
virtual void	ShowMembers(TMemberInspector&)
const Char_t*	SlantedFont()
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
void	UpdateParamsAndFPGAs()
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

Data Members

public:

enum EDGFStatusBit {	kDGFVerboseMode
	kDGFDebugMode
	kDGFModNumGlobal
	kDGFOfflineMode
	kDGFSimulStartStop
	kDGFSyncClocks
	kDGFIndivSwitchBusTerm
	kDGFUserPSA
	kDGFEsoneSingleStepMode
};
enum EDGFAccessBit {	kDGFAccessDirectory
	kDGFAccessRegular
	kDGFAccessRead
	kDGFAccessWrite
};
enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

TString	fBoldFont
TString	fCAMACHost	default camac host
ULong_t	fColorBlack	gui colors
ULong_t	fColorBlue
ULong_t	fColorDarkBlue
ULong_t	fColorGold
ULong_t	fColorGray
ULong_t	fColorGreen
ULong_t	fColorRed
ULong_t	fColorWhite
ULong_t	fColorYellow
TString	fCptmCodeFile	where to load CPTM code from
TString	fCptmSettingsPath	... (cptm)
TString	fDSPCodeFile	... DSP code
TString	fDSPParamsFile	... param table
TString	fDataPath	where to read user's setup files from
Int_t	fDefaultCrate	default crate number
Double_t	fDeltaT	time granularity
TString	fDgfSettingsPath	param settings (dgf)
TMrbResource*	fDgfrc
TString	fFippiFPGAConfigFile[2]	... (fippi, rev D,E)
TList	fHeap	!
HistPresent*	fHistPresent	! the famous histogram presenter
Bool_t	fIndivSwitchBusTerm	kTRUE if switchbus should be terminated individually
TString	fLoadPath	where to load DSP/FPGA code from
TMrbLofNamedX	fLofChannels	! channel numbers
TMrbLofNamedX	fLofClusters	clusters: name, serial, color
TMrbLofNamedX	fLofModuleKeys[20]	! ... key list
TList	fLofModules	list of modules
TObjArray	fLofModulesToBeUpdated	modules to be updated
Int_t	fNofClusters	number of clusters
Int_t	fNofModules	number of DGF modules
TString	fNormalFont	gui fonts
UInt_t	fPatEnabled[20]	pattern of modules enabled
UInt_t	fPatInUse[20]	pattern of modules in use
TMrbResource*	fRootrc	environment
TString	fRunDataFile	... run data
Int_t	fSelectedChannel	index of channel currently selected
Int_t	fSelectedModule	index of module currently selected
Bool_t	fSimulStartStop	kTRUE if to start/stop simultaneously
TString	fSlantedFont
UInt_t	fStatus	status bits
Bool_t	fSyncClocks	kTRUE if clocks have to be synchronized
TString	fSystemFPGAConfigFile	... FPGA config (system)
TString	fUPSAParamsFile	... extension for user psa
Bool_t	fUserPSA	kTRUE if user PSA code should be used

Class Charts

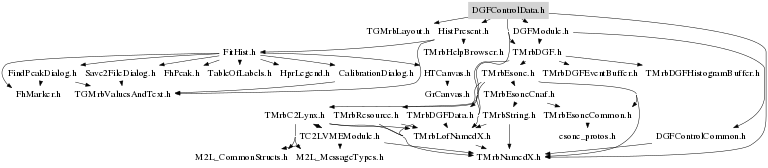

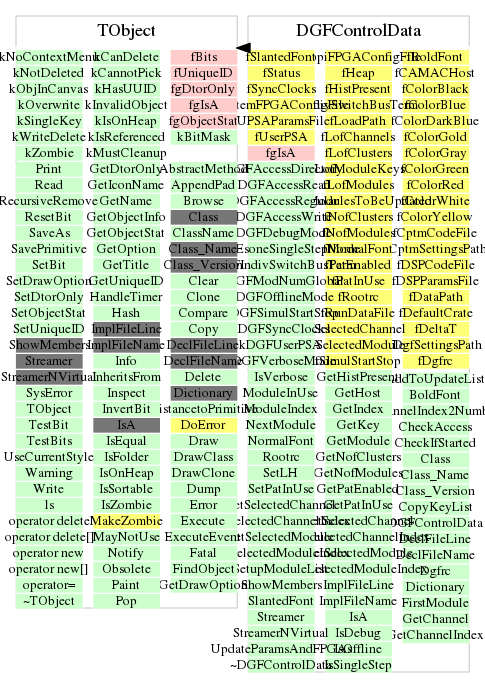

Inheritance Inherited Members Includes Libraries

Function documentation

DGFControlData()

virtual ~DGFControlData()

Int_t SetupModuleList()

		DGFControlData(const DGFControlData & f) {};	// default copy ctor

Int_t GetNofModules()

{ return(fNofModules); }

Int_t GetNofClusters()

{ return(fNofClusters); }

TMrbLofNamedX * CopyKeyList(TMrbLofNamedX* KeyList, Int_t Cluster = 0, Int_t NofClusters = -1, Bool_t ArrayMode = kTRUE)

TMrbLofNamedX * CopyKeyList(TMrbLofNamedX* KeyList, Int_t Cluster, UInt_t Pattern, Bool_t ClearFlag = kFALSE)

DGFModule * FirstModule()

{ return((DGFModule *) fLofModules.First()); }

DGFModule * NextModule(DGFModule* Last)

{ return((DGFModule *) fLofModules.After(Last)); }

Bool_t CheckIfStarted()

const Char_t * GetHost()

{ return(fCAMACHost.Data()); }

DGFModule * GetModule(const Char_t* ModuleName)

DGFModule * GetModule(Int_t GlobIndex)

DGFModule * GetModule(Int_t Cluster, Int_t ModNo)

Int_t GetChannel(Int_t ChannelIndex)

Int_t GetChannelIndex(Int_t Channel)

UInt_t ModuleIndex(Int_t Cluster, Int_t ModNo)

{ return(0x10000 << Cluster | 0x1 << ModNo); }

TMrbNamedX * GetKey(const Char_t* ModuleName)

TMrbNamedX * GetKey(const Char_t* ModuleName, Int_t& Cluster, Int_t& ModuleNumber)

UInt_t GetIndex(const Char_t* ModuleName)

UInt_t GetIndex(const Char_t* ModuleName, Int_t& Cluster, Int_t& ModuleNumber)

UInt_t GetPatEnabled(Int_t Cluster)

{ return(fPatEnabled[Cluster]); }

UInt_t GetPatInUse(Int_t Cluster)

{ return(fPatInUse[Cluster]); }

void SetPatInUse(Int_t Cluster, UInt_t Pattern)

{ fPatInUse[Cluster] = Pattern & 0xFFFF; }

DGFModule * GetSelectedModule()

{ return(this->GetModule(fSelectedModule)); }

Int_t GetSelectedModuleIndex()

{ return(fSelectedModule); }

void SetSelectedModuleIndex(Int_t ModuleIndex)

{ fSelectedModule = ModuleIndex; }

void SetSelectedModule(const Char_t* ModuleName)

void SetSelectedModule(DGFModule* Module)

{ this->SetSelectedModule(Module->GetName()); }

Int_t GetSelectedChannel()

{ return(this->GetChannel(fSelectedChannel)); }

Int_t GetSelectedChannelIndex()

{ return(fSelectedChannel); }

void SetSelectedChannel(Int_t Channel)

{ fSelectedChannel = this->GetChannelIndex(Channel); }

void SetSelectedChannelIndex(Int_t ChannelIndex)

{ fSelectedChannel = ChannelIndex; }

Int_t ChannelIndex2Number(Int_t ChannelIndex)

Bool_t ModuleInUse(DGFModule* Module)

Bool_t ModuleInUse(const Char_t* ModuleName)

HistPresent * GetHistPresent()

{ return(fHistPresent); }

Bool_t IsOffline()

{ return((fStatus & kDGFOfflineMode) != 0); }

Bool_t IsVerbose()

{ return((fStatus & DGFControlData::kDGFVerboseMode) != 0); }

Bool_t IsDebug()

{ return((fStatus & DGFControlData::kDGFDebugMode) != 0); }

Bool_t IsSingleStep()

{ return((fStatus & DGFControlData::kDGFEsoneSingleStepMode) != 0); }

const Char_t * NormalFont()

{ return(fNormalFont.Data()); }

const Char_t * BoldFont()

{ return(fBoldFont.Data()); }

const Char_t * SlantedFont()

{ return(fSlantedFont.Data()); }

void SetLH(TGMrbLayout* Layout1, TGMrbLayout* Layout2, TGLayoutHints* Hints)

Bool_t CheckAccess(const Char_t* FileOrPath, Int_t AccessMode, TString& ErrMsg, Bool_t WarningOnly = kFALSE)

void UpdateParamsAndFPGAs()

void AddToUpdateList(DGFModule* Module)

TMrbResource * Rootrc()

{ return(fRootrc ? fRootrc : NULL); }

TMrbResource * Dgfrc()

{ return(fDgfrc ? fDgfrc : NULL); }
