class TMrbMesytec_Mdpp16: public TMrbVMEModule
_________________________________________________[C++ CLASS DEFINITION FILE] Name: expconf/inc/TMrbMesytec_Mdpp16.h Purpose: Define experimental configuration for MARaBOU Class: TMrbMesytec_Mdpp16 -- VME adc Description: Class definitions to implement a configuration front-end for MARaBOU Author: R. Lutter Revision: $Id: TMrbMesytec_Mdpp16.h,v 1.17 2012-01-18 11:11:32 Marabou Exp $ Date: Keywords:
Function Members (Methods)
public:
protected:
| virtual void | DefineRegisters() |
| void | TMrbModule::DeleteRegisters() |
| virtual void | TObject::DoError(int level, const char* location, const char* fmt, va_list va) const |
| void | TObject::MakeZombie() |
| Bool_t | UpdateSettings() |
Data Members
public:
| enum { | kSegSize | |
| kAddrMod | ||
| kNofChannels | ||
| kNofChannelPairs | ||
| kChanAct | ||
| }; | ||
| enum EMrbRegisters { | kRegAddrSource | |
| kRegAddrReg | ||
| kRegModuleId | ||
| kRegDataWidth | ||
| kRegMultiEvent | ||
| kRegXferData | ||
| kRegMarkingType | ||
| kRegTdcResolution | ||
| kRegAdcResolution | ||
| kRegOutputFormat | ||
| kRegWinStart | ||
| kRegWinWidth | ||
| kRegTrigSource | ||
| kRegFirstHit | ||
| kRegTrigOutput | ||
| kRegEcl3 | ||
| kRegEcl2 | ||
| kRegEcl1 | ||
| kRegEcl0 | ||
| kRegNim4 | ||
| kRegNim3 | ||
| kRegNim2 | ||
| kRegNim1 | ||
| kRegNim0 | ||
| kRegPulserStatus | ||
| kRegPulserAmplitude | ||
| kRegMonitor | ||
| kRegMonitorChannel | ||
| kRegMonitorWave | ||
| kRegTsSource | ||
| kRegTsDivisor | ||
| kRegMultHighLimit | ||
| kRegMultLowLimit | ||
| kRegChannelPair | ||
| kRegTFIntDiff | ||
| kRegPoleZero | ||
| kRegGain | ||
| kRegThresh | ||
| kRegShaping | ||
| kRegBaseLineRes | ||
| kRegResetTime | ||
| kRegRiseTime | ||
| }; | ||
| enum EMrbAddressSource { | kAddressBoard | |
| kAddressRegister | ||
| }; | ||
| enum EMrbDataWidth { | kDataWidth8 | |
| kDataWidth16 | ||
| kDataWidth32 | ||
| kDataWidth64 | ||
| }; | ||
| enum EMrbMultiEvent { | kMultiEvtNo | |
| kMultiEvtYes | ||
| kMultiEvt1By1 | ||
| kMultiEvtNoBerr | ||
| }; | ||
| enum EMrbMarkingType { | kMarkingTypeEvent | |
| kMarkingTypeTs | ||
| kMarkingTypeXts | ||
| }; | ||
| enum EMrbOutputFormat { | kOutFmtStandard | |
| kOutFmtAmplitude | ||
| kOutFmtTime | ||
| }; | ||
| enum EMrbAdcResolution { | kAdcRes16 | |
| kAdcRes15 | ||
| kAdcRes14 | ||
| kAdcRes13 | ||
| kAdcRes12 | ||
| }; | ||
| enum EMrbTdcResolution { | kTdcRes781_32 | |
| kTdcRes391_64 | ||
| kTdcRes195_128 | ||
| kTdcRes98_256 | ||
| kTdcRes49_512 | ||
| kTdcRes24_1024 | ||
| }; | ||
| enum { | kWinStartDefault | |
| kWinWidthDefault | ||
| }; | ||
| enum EMrbFirstHit { | kFirstHitOnly | |
| kFirstHitAll | ||
| }; | ||
| enum EMrbEcl3 { | kEcl3Off | |
| kEcl3Trig0 | ||
| kEcl3UnTerm | ||
| }; | ||
| enum EMrbEcl2 { | kEcl2Off | |
| kEcl2Sync | ||
| kEcl2Trig1 | ||
| kEcl2UnTerm | ||
| }; | ||
| enum EMrbEcl1 { | kEcl1Off | |
| kEcl1Reset | ||
| kEcl1UnTerm | ||
| }; | ||
| enum EMrbEcl0 { | kEcl0Off | |
| kEcl0Busy | ||
| kEcl0DataReady | ||
| }; | ||
| enum EMrbNim4 { | kNim4Off | |
| kNim4Trig0 | ||
| }; | ||
| enum EMrbNim3 { | kNim3Off | |
| kNim3Sync | ||
| }; | ||
| enum EMrbNim2 { | kNim2Off | |
| kNim2Trig1 | ||
| kNim2Reset | ||
| }; | ||
| enum EMrbNim0 { | kNim0Off | |
| kNim0Cbus | ||
| kNim0BusyOut | ||
| kNim0DataReady | ||
| }; | ||
| enum EMrbPulserStatus { | kPulserOff | |
| kPulserOn | ||
| }; | ||
| enum EMrbMonitor { | kMonitorOff | |
| kMonitorOn | ||
| }; | ||
| enum { | kPulserMaxAmpl | |
| }; | ||
| enum EMrbTsSource { | kTstampVME | |
| kTstampExtern | ||
| kTstampReset | ||
| }; | ||
| enum EMrbMultLimit { | kMultHighLimit | |
| kMultLowLimit | ||
| }; | ||
| enum EMrbBaseLineRes { | kBaseLineResOff | |
| kBaseLineResSoft | ||
| kBaseLineResStrict | ||
| }; | ||
| enum { | kValueNotSet | |
| kValueToBeInit | ||
| kTFIntDiffDefault | ||
| kPoleZeroDefault | ||
| kGainDefault | ||
| kThreshDefault | ||
| kShapingDefault | ||
| kBLResDefault | ||
| kResetTimeDefault | ||
| kRiseTimeDefault | ||
| }; | ||
| enum TObject::EStatusBits { | kCanDelete | |
| kMustCleanup | ||
| kObjInCanvas | ||
| kIsReferenced | ||
| kHasUUID | ||
| kCannotPick | ||
| kNoContextMenu | ||
| kInvalidObject | ||
| }; | ||
| enum TObject::[unnamed] { | kIsOnHeap | |
| kNotDeleted | ||
| kZombie | ||
| kBitMask | ||
| kSingleKey | ||
| kOverwrite | ||
| kWriteDelete | ||
| }; |
protected:

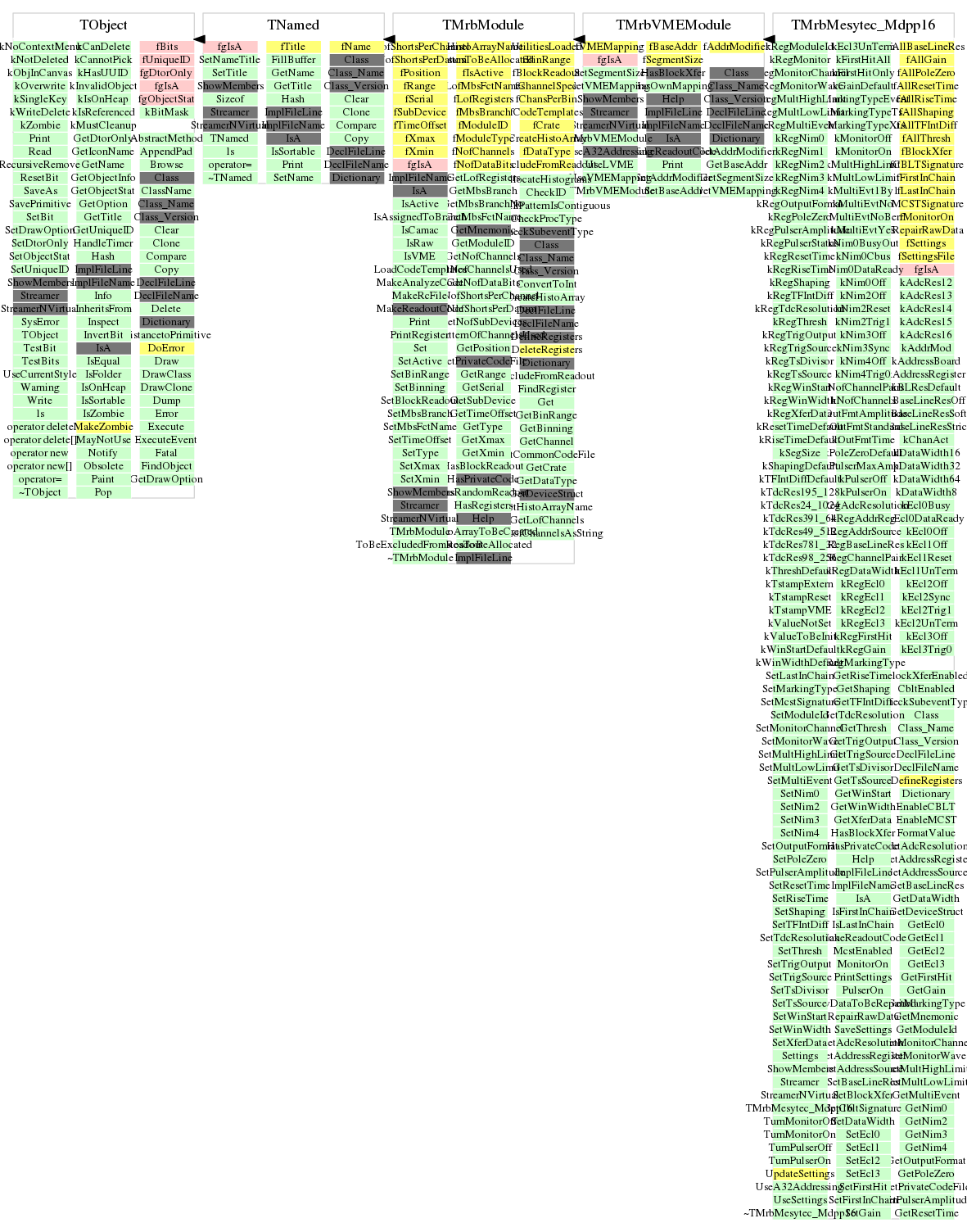

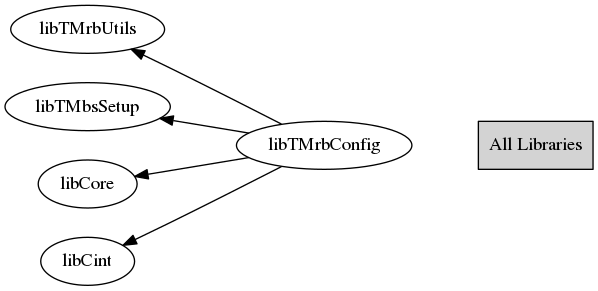

Class Charts
Function documentation
TMrbMesytec_Mdpp16(const Char_t* ModuleName, UInt_t BaseAddr)
Bool_t MakeReadoutCode(ofstream& RdoStrm, TMrbConfig::EMrbModuleTag TagIndex)
Bool_t MakeReadoutCode(ofstream& RdoStrm, TMrbConfig::EMrbModuleTag TagIndex, TMrbVMEChannel* Channel, Int_t Value = 0)
Bool_t SetAddressSource(Int_t AddrSource)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegAddrSource, AddrSource)); }Bool_t SetAddressSource(Char_t* AddrSource)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegAddrSource, AddrSource)); }Bool_t SetAddressRegister(Int_t Address)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegAddrReg, Address)); }Bool_t SetModuleId(Int_t ModuleId)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegModuleId, ModuleId)); }Bool_t SetDataWidth(Char_t* Format)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegDataWidth, Format)); }Bool_t SetMarkingType(Int_t Mtype)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegMarkingType, Mtype)); }Bool_t SetMarkingType(Char_t* Mtype)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegMarkingType, Mtype)); }Bool_t SetTdcResolution(Int_t Res)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegTdcResolution, Res)); }Bool_t SetTdcResolution(Char_t* Res)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegTdcResolution, Res)); }Bool_t SetAdcResolution(Int_t Res)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegAdcResolution, Res)); }Bool_t SetAdcResolution(Char_t* Res)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegAdcResolution, Res)); }Bool_t SetOutputFormat(Int_t Format)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegOutputFormat, Format)); }Bool_t SetOutputFormat(Char_t* Format)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegOutputFormat, Format)); }Bool_t SetTrigSource(Int_t TrigSource)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegTrigSource, TrigSource)); }Bool_t SetTrigSource(Int_t Trig, Int_t Chan, Int_t Bank)
Bool_t GetTrigSource(TArrayI& TrigSource)
Bool_t SetTrigOutput(Int_t TrigOutput)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegTrigOutput, TrigOutput)); }Bool_t SetTrigOutput(Int_t Chan, Int_t Bank)
Bool_t GetTrigOutput(TArrayI& TrigOutput)
Bool_t TurnPulserOn()
{ return(this->Set(TMrbMesytec_Mdpp16::kRegPulserStatus, TMrbMesytec_Mdpp16::kPulserOn)); }Bool_t TurnPulserOff()
{ return(this->Set(TMrbMesytec_Mdpp16::kRegPulserStatus, TMrbMesytec_Mdpp16::kPulserOff)); }Bool_t PulserOn()
{ return(this->Get(TMrbMesytec_Mdpp16::kRegPulserStatus) == TMrbMesytec_Mdpp16::kPulserOn ? kTRUE : kFALSE); }Bool_t SetPulserAmplitude(Int_t Ampl)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegPulserAmplitude, Ampl)); }Bool_t SetTsDivisor(Int_t Divisor)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegTsDivisor, Divisor)); }Bool_t TurnMonitorOn()
{ return(this->Set(TMrbMesytec_Mdpp16::kRegMonitor, TMrbMesytec_Mdpp16::kMonitorOn)); }Bool_t TurnMonitorOff()
{ return(this->Set(TMrbMesytec_Mdpp16::kRegMonitor, TMrbMesytec_Mdpp16::kMonitorOff)); }Bool_t MonitorOn()
{ return(this->Get(TMrbMesytec_Mdpp16::kRegMonitor) == TMrbMesytec_Mdpp16::kMonitorOn ? kTRUE : kFALSE); }Bool_t SetMonitorChannel(Int_t Channel)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegMonitorChannel, Channel)); }Bool_t SetMultHighLimit(Int_t Limit)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegMultHighLimit, Limit)); }Bool_t SetMultLowLimit(Int_t Limit)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegMultLowLimit, Limit)); }Bool_t SetTFIntDiff(Int_t TFval, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegTFIntDiff, TFval, Chan)); }Bool_t SetPoleZero(Int_t PZval, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegPoleZero, PZval, Chan)); }Bool_t SetGain(Int_t Gain, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegGain, Gain, Chan)); }Bool_t SetThresh(Int_t Thresh, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegThresh, Thresh, Chan)); }Bool_t SetShaping(Int_t Shaping, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegShaping, Shaping, Chan)); }Bool_t SetBaseLineRes(Int_t BLRval, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegBaseLineRes, BLRval, Chan)); }Bool_t SetResetTime(Int_t Reset, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegResetTime, Reset, Chan)); }Bool_t SetRiseTime(Int_t Rise, Int_t Chan)
{ return(this->Set(TMrbMesytec_Mdpp16::kRegRiseTime, Rise)); }TEnv * UseSettings(const Char_t* SettingsFile = 0)
Bool_t SaveSettings(const Char_t* SettingsFile = 0)
void EnableMCST(UInt_t Signature, Bool_t FirstInChain = kFALSE, Bool_t LastInChain = kFALSE)
{ fMCSTSignature = Signature; fFirstInChain = FirstInChain; fLastInChain = LastInChain; }void EnableCBLT(UInt_t Signature, Bool_t FirstInChain = kFALSE, Bool_t LastInChain = kFALSE)
{ fCBLTSignature = Signature; fFirstInChain = FirstInChain; fLastInChain = LastInChain; }void PrintSettings(ostream& OutStrm)
const Char_t * FormatValue(TString& Value, Int_t Index, Int_t SubIndex = -1, Int_t Base = 10)
Bool_t CheckSubeventType(TMrbSubevent* Subevent) const
void DefineRegisters()
